Below are the technical specifications for the SFXGP beast class race.
The following listed items are the details for the drones that will race in the beast class division. We will eventually have 4 divisions, Custom class 15", Beast class 13", Chopper class 10", zoom class 3" indoor. Season 1 will be beast class only.
Frame
13" Mark 4
- Lightweight 370g MARK4 V2 Pro 13" carbon fiber drone frame solves the problem of bulky setups, perfect for high - speed FPV racing and agile maneuvers.
- The H - frame design of this MARK4 V2 13 - inch RC Racing FPV Crossover Drone Frame provides enhanced stability, reducing wobbles during intense flights and sharp turns.

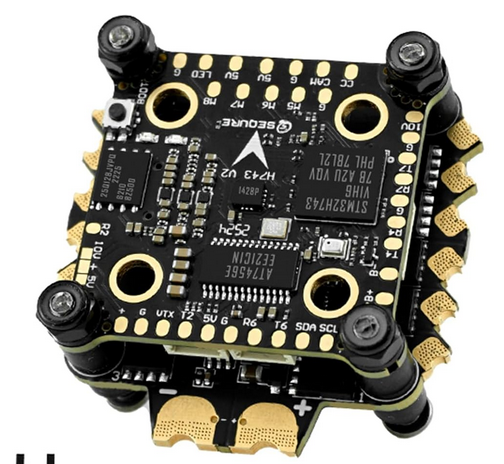

SEQURE F7 FC w 70A ESC
- EQURE flight controller supports up to 8 motors, easily constructing X8. Integrated with 5V/10V dual BEC output, providing independent power for DJI O3 and analog VTX.
- 4 in 1 ESC, 70A continuous current, 150A peak current. Support 2-8S Lipo,digital protocol DShot600/300/150 and is compatible with Oneshot/MultiShot/PWM protocol.
- Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.

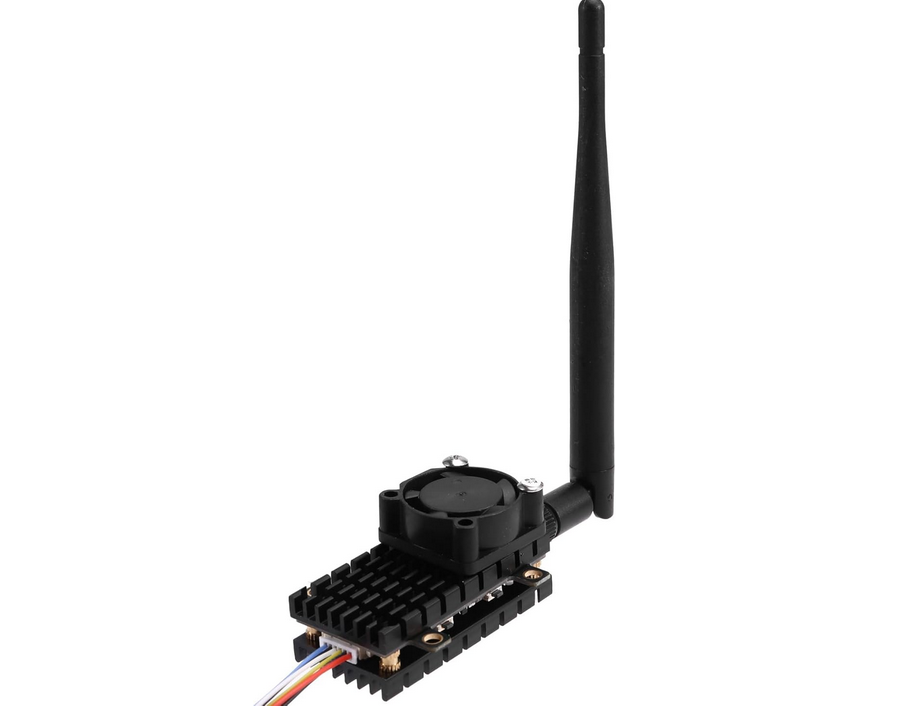

Video Transmitter
5.8Ghz 2W VTX 64CH FPV Video Transmitter Built-in Cooling Fan
- Wide voltage input, wide range of applications, good versatility.
- Optimized for FPV use: This transmitter is tailored for first-person view applications to reliable and clear video feeds for an immersive flight experience.

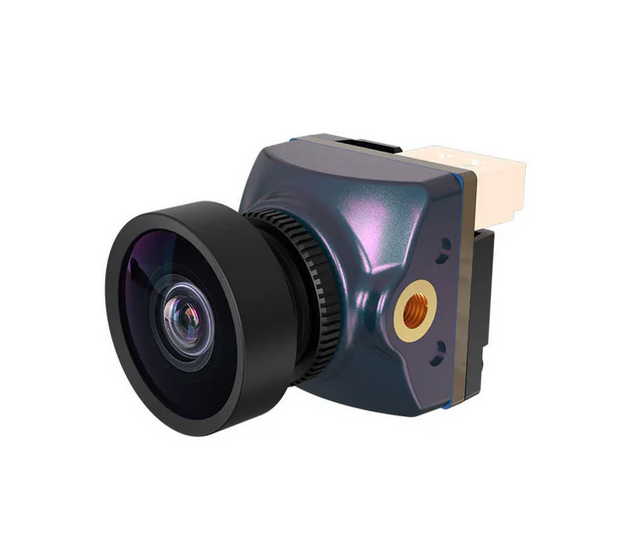

Camera: RunCam Racer Nano 4
The updated RunCam Racer Nano 4 comes with crystal clear image, wider FOV, super WDR (6ms latency) and is optimized for OLED goggles and loved by professional FPV pilots! Compared to the previous generation cameras, the moiré interference (noise) is significantly reduced. At the same time, the color is fine-tuned to be more natural.
Beast Class Components
Below are the components of the 13" Beast class entry
Beast Class Specifications (Con't)

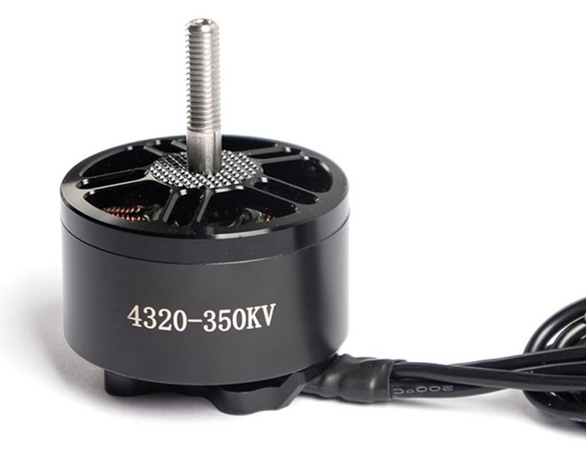

Motors
350KV design delivers high torque at low RPM for 13-15" props, extending flight times on 6S-12S batteries. CNC aluminum housing + high-temp magnets ensure reliable operation under heavy loads

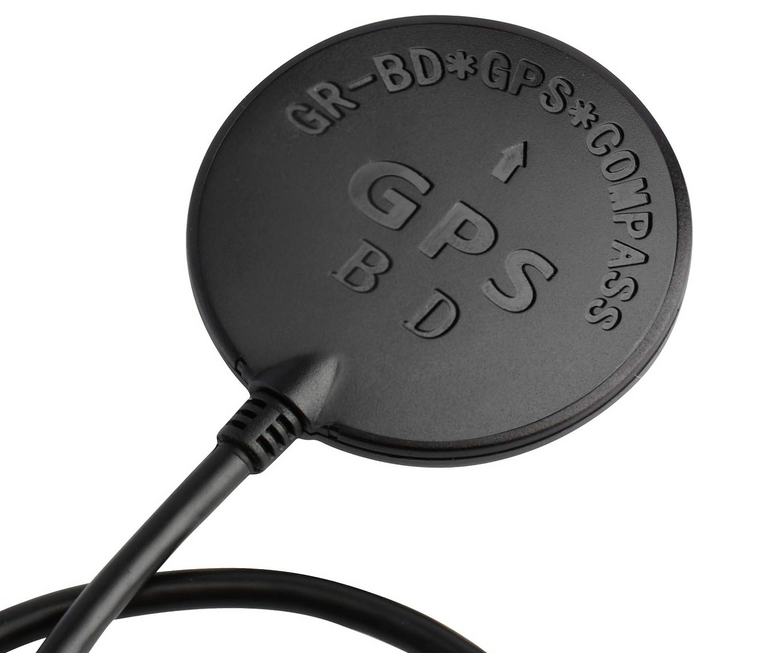

GPS
GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC

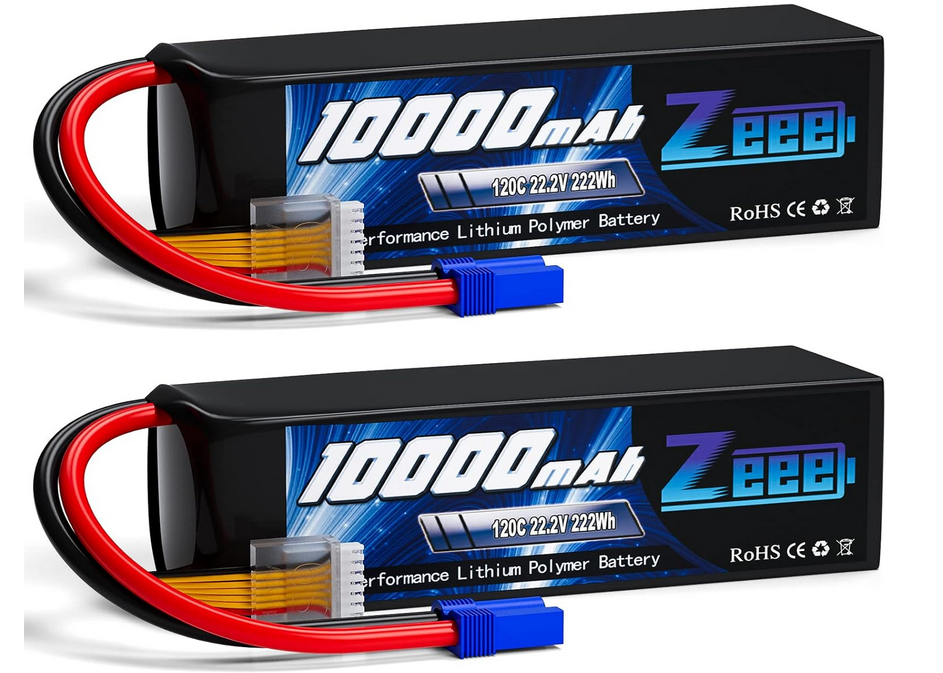

Batteries:
Zeee 6S Lipo
22.2V; Configuration: 6S1P; Capacity: 10000mAh; Discharge: 120C; Connector type: EC5 Plug.
Dimensions: 169*49*63mm/6.65*1.93*2.48inch(L*W*H); Approx Weight: 1150g/40.57oz.

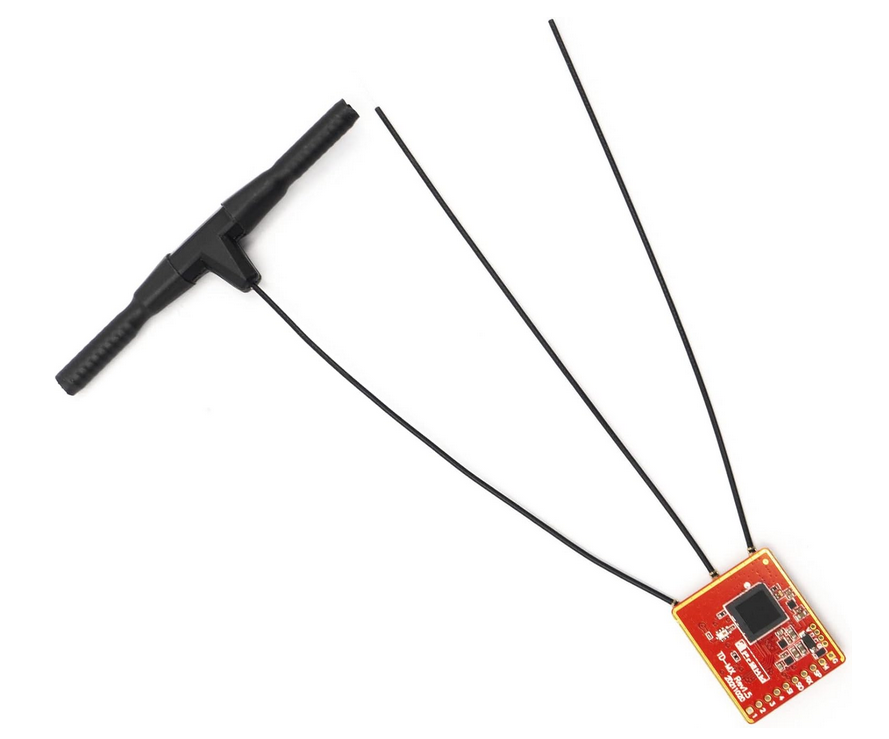

Receiver
FrSky Tandem TD MX Dual-Band 2.4GHz/900MHz RC Receiver – Triple Antenna, 4 PWM Channels, SBUS/S.Port/FBUS, OTA Update, Long Range Low Latency for FPV Drone & RC Model
